Plotting and plotstyles#

Plotting and visualizing data is an integral part of data analysis. pyfar provides functions to plot time signals, frequency spectra, and to create other related data plots. These can be used to inspect the data or generate scientific plots.

Under the hood, pyfar uses the matplotlib library for plotting. This allows for a high degree of customization in the creation of figures. This notebook provides an overview of the plotting functions and how they can be used to customize the plots for your use-cases. For more details on the plotting functions, please refer to the documentation.

pyfar also adds interactive features to the plots for inspection, for example, zooming and cycling through channels. This can be tested in the interactive plots notebook.

Line plots#

First, we will import pyfar and create a time signal to plot.

[1]:

import pyfar as pf
import numpy as np
import matplotlib.pyplot as plt

# set matplotlib backend for plotting
%matplotlib inline

# 1024 samples sine sweep between 100 and 500 Hz
sweep = pf.signals.exponential_sweep_time(2**10, [100, 500])

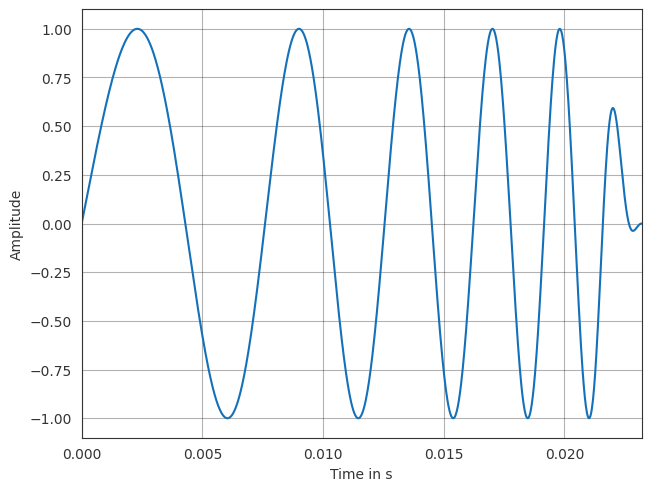

For a simple time plot, we can use

[2]:

pf.plot.time(sweep)

[2]:

<Axes: xlabel='Time in s', ylabel='Amplitude'>

../../_images/gallery_interactive_pyfar_plotting_4_1.png

Note, that the plot is styled using the default settings of pyfar. Checkout the styling plots section for more information on what is changed exactly.

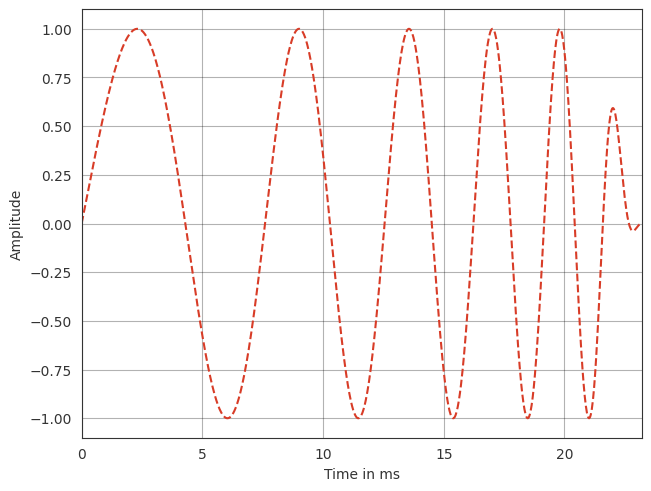

The plot can be customized using pyfar specific arguments as well as matplotlib specific arguments.

[3]:

pf.plot.time(sweep,
                # pyfar arguments
                unit="ms",
                # matplotlib arguments
                color="r",
                linestyle="--",
            )

[3]:

<Axes: xlabel='Time in ms', ylabel='Amplitude'>

../../_images/gallery_interactive_pyfar_plotting_6_1.png

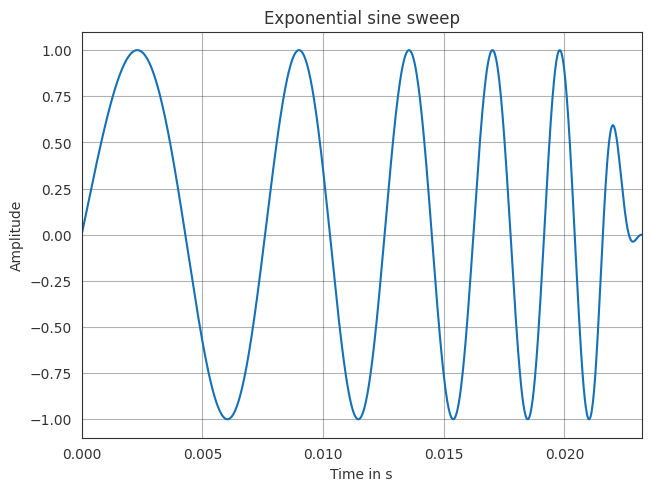

Changes can also be made directly using the matplotlib functions. For this, pyfar returns the axis objects.

[4]:

ax = pf.plot.time(sweep)

ax.set_title("Exponential sine sweep")

[4]:

Text(0.5, 1.0, 'Exponential sine sweep')

../../_images/gallery_interactive_pyfar_plotting_8_1.png

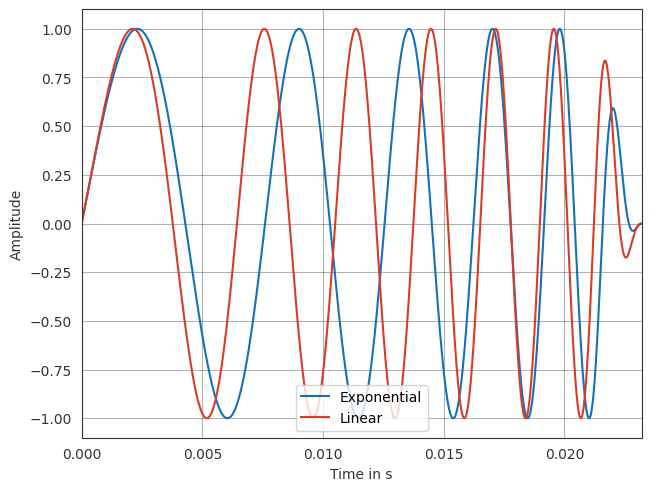

pyfar also supports plotting multiple signals in one figure.

[5]:

lin_sweep = pf.signals.linear_sweep_time(2**10, [100, 500])

ax = pf.plot.time(sweep, label="Exponential")
ax = pf.plot.time(lin_sweep, label="Linear")
ax.legend(loc="lower center")

[5]:

<matplotlib.legend.Legend at 0x7fe8442e51e0>

../../_images/gallery_interactive_pyfar_plotting_10_1.png

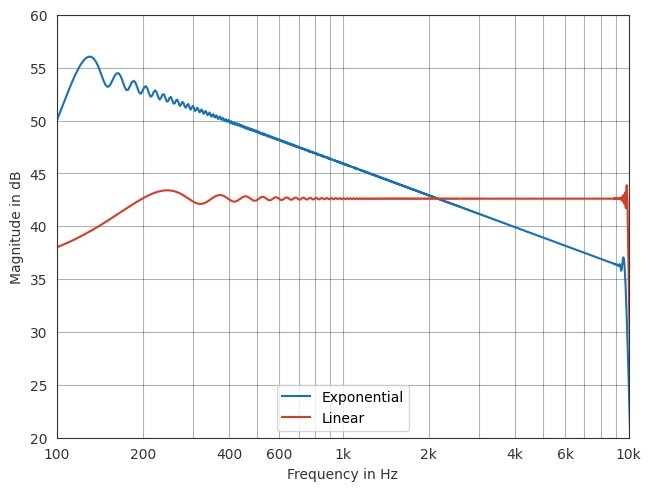

pyfar.Signal and pyfar.FrequencyData objects can also be plotted in the frequency domain. Note, that the FFT norm is taken into account when plotting the frequency domain see the notebook on FFT normalization for more information on this.

[6]:

sweep = pf.signals.exponential_sweep_time(2**14, [100, 10000])
lin_sweep = pf.signals.linear_sweep_time(2**14, [100, 10000])

ax = pf.plot.freq(sweep, label="Exponential")
ax = pf.plot.freq(lin_sweep, label="Linear")
ax.legend(loc="lower center")
ax.set_xlim(100, 10000)
ax.set_ylim(20, 60)

[6]:

(20.0, 60.0)

../../_images/gallery_interactive_pyfar_plotting_12_1.png

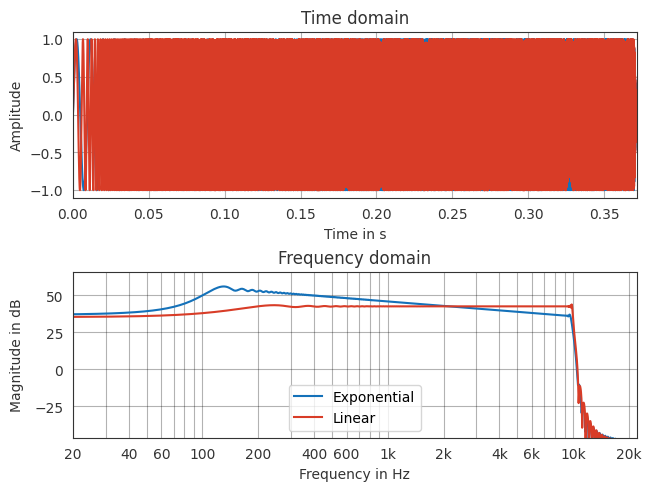

There are also convenient functions to plot the time signal and the frequency spectrum.

[7]:

ax = pf.plot.time_freq(sweep, label="Exponential")
ax = pf.plot.time_freq(lin_sweep, label="Linear")
ax[0].set_title("Time domain")
ax[1].set_title("Frequency domain")
ax[1].legend(loc="lower center")

[7]:

<matplotlib.legend.Legend at 0x7fe80ad1baf0>

../../_images/gallery_interactive_pyfar_plotting_14_1.png

Note, that the plot function now returns an array of axis objects. One for each subplot.

Spectrograms#

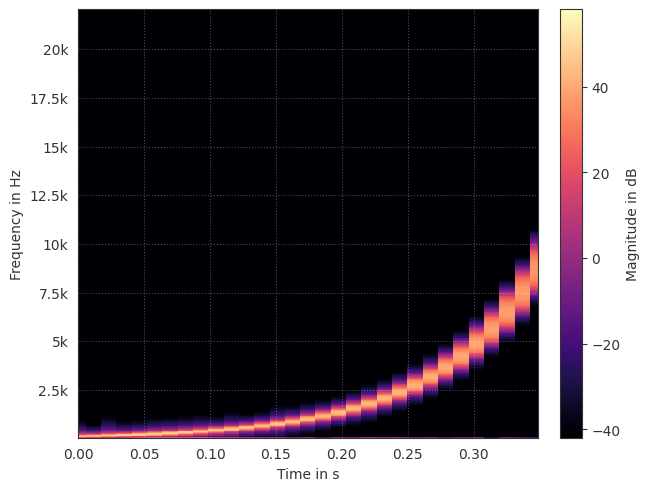

pyfar also provides functions to create spectrograms.

[8]:

pf.plot.spectrogram(sweep)

[8]:

([<Axes: xlabel='Time in s', ylabel='Frequency in Hz'>,
  <Axes: label='<colorbar>', ylabel='Magnitude in dB'>],
 <matplotlib.collections.QuadMesh at 0x7fe80ad39750>,
 <matplotlib.colorbar.Colorbar at 0x7fe80ad38e50>)

../../_images/gallery_interactive_pyfar_plotting_17_1.png

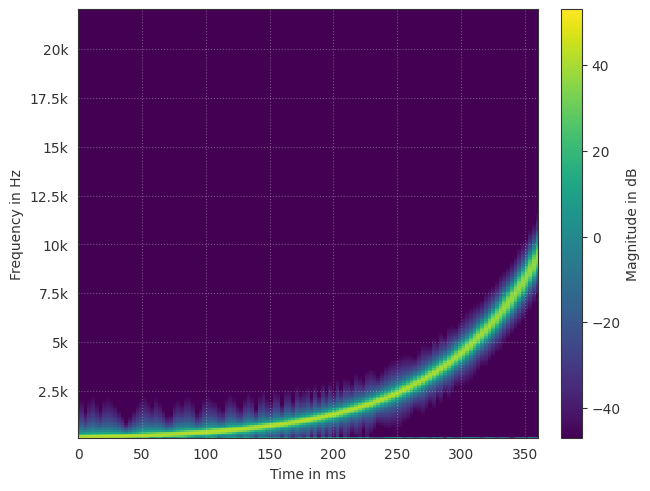

Similar to the line plots, the spectrogram can be customized using pyfar specific arguments as well as matplotlib specific arguments. Note, that either `matplotlib.pyplot.pcolormesh() <https://matplotlib.org/stable/api/_as_gen/matplotlib.pyplot.pcolormesh.html>`__ or `matplotlib.pyplot.contourf() <https://matplotlib.org/stable/api/_as_gen/matplotlib.pyplot.contourf.html>`__ is used depending on the selected method. As such, also the available arguments might change.

[9]:

pf.plot.spectrogram(sweep,
                    # pyfar arguments
                    window_overlap_fct =0.75,
                    window_length=2**9,
                    unit="ms",
                    # matplotlib arguments
                    cmap="viridis",
                )

[9]:

([<Axes: xlabel='Time in ms', ylabel='Frequency in Hz'>,
  <Axes: label='<colorbar>', ylabel='Magnitude in dB'>],
 <matplotlib.collections.QuadMesh at 0x7fe80af2ea70>,
 <matplotlib.colorbar.Colorbar at 0x7fe80ae3c9d0>)

../../_images/gallery_interactive_pyfar_plotting_19_1.png

2D plots#

There are also functions to plot a multi-channel pyfar.Signal in 2D. All line plots have such a corresponding 2D plot method.

Let us take a look how this can help us to visualize the data. First, we will create a multi-channel impulse signal with different time delays and amplitudes across channels.

[10]:

sample_delays = np.rint(8 * np.sin(np.linspace(0, 2*np.pi, 25))).astype(int) + 32
impulses = pf.signals.impulse(64, sample_delays, np.linspace(1, .5, 25))

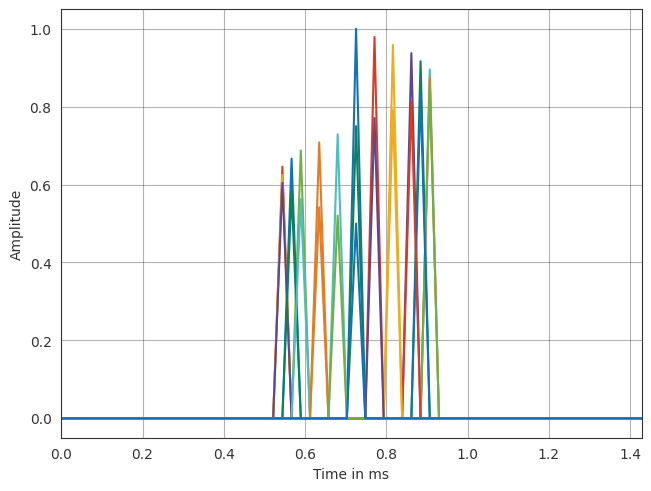

If we plot this using the line plots, this can sometimes be hard to interpret.

[11]:

pf.plot.time(impulses, unit='ms')

[11]:

<Axes: xlabel='Time in ms', ylabel='Amplitude'>

../../_images/gallery_interactive_pyfar_plotting_23_1.png

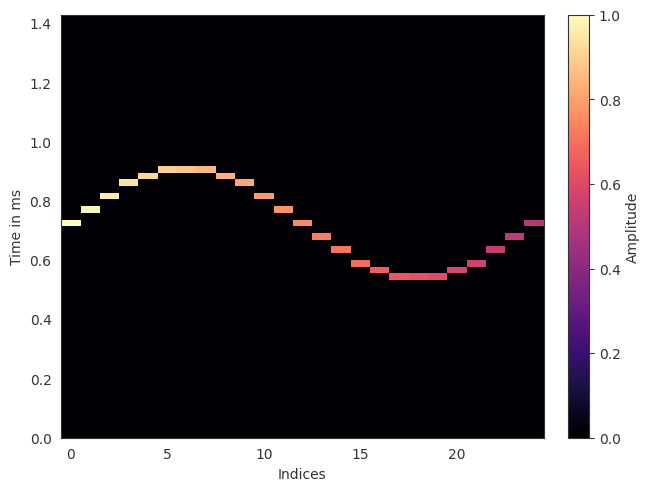

Using the 2D plots, the data is visualized in a more intuitive way.

[12]:

pf.plot.time_2d(impulses, unit='ms')

[12]:

([<Axes: xlabel='Indices', ylabel='Time in ms'>,
  <Axes: label='<colorbar>', ylabel='Amplitude'>],
 <matplotlib.collections.QuadMesh at 0x7fe809a00880>,
 <matplotlib.colorbar.Colorbar at 0x7fe809a00c10>)

../../_images/gallery_interactive_pyfar_plotting_25_1.png

Styling plots#

From the plots above, you might have noticed that the plots look different from the default matplotlib style. This is because pyfar changes the default style of matplotlib towards a more convenient style for acoustic research. Some of the changes include:

Grid enabled by default
Frequency axis with adapted tick locations
Custom color cycle, wich also overwrites the default matplotlib colors (e.g. 'r' results in the red defined by pyfar.plot.color)

Furthermore, pyfar includes two pyfar-specific plot styles: light and dark. The default style is light.

The pyfar plot functions accept a style argument to change the style.

[13]:

signal = pf.Signal([0, 1, 0, -1], 44100)

pf.plot.time(signal, style="dark")

[13]:

<Axes: xlabel='Time in s', ylabel='Amplitude'>

../../_images/gallery_interactive_pyfar_plotting_27_1.png

The overall style can be temporarily changed using pyfar.plot.context which is a wrapper around matplotlib.context

[14]:

with pf.plot.context(style="dark"):
    # this plot uses the dark style
    fig, ax = plt.subplots(1, 1)
    pf.plot.time(signal, ax=ax)

# plots outside the `with` context would use the standard style again

../../_images/gallery_interactive_pyfar_plotting_29_0.png

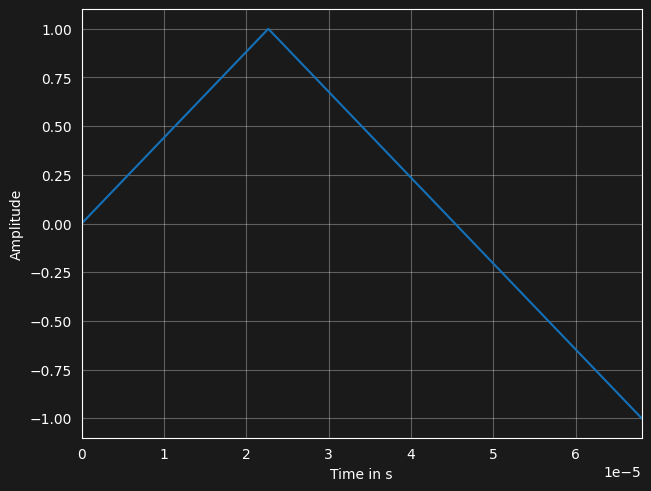

This overall change in style can also be made permanent with the pf.plot.use() function like this:

[15]:

pf.plot.use(style="dark")
fig, ax = plt.subplots(1, 1)
pf.plot.time(signal, ax=ax)

[15]:

<Axes: xlabel='Time in s', ylabel='Amplitude'>

../../_images/gallery_interactive_pyfar_plotting_31_1.png
